GENOVO POWER MACHINE LTD.

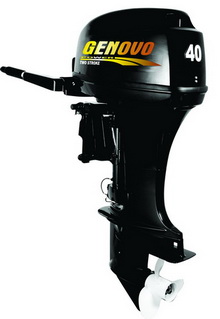

T40BML

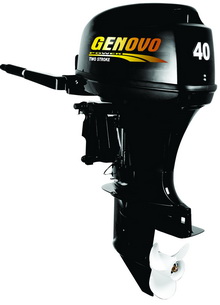

T40BMS

Item		T40BML	T40BMS	T40BWL	T40BWS	T40FWL	T40FWL
Overall length	mm(in.)	1106(43.5)				645(25.4)
Overall width	mm(in.)	408(16.0)				372(14.6)
Overall height	mm(in.)	1340(52.8)	1213(47.8)	1340(52.8)	1213(47.8)	1340(52.8)	1213(47.8)
Transom height	mm(in.)	508(20.0)	381(15)	508(20.0)	381(15)	508(20.0)	381(15)
Weight	kg	75.1	73.5	78.6	77	77.7	76.1
Full throttle operating range	r/min	4500-5500
Maximum output	KW(HP)	29.4(40)@5000r/min
Idling speed(Neutral)	r/min	925-1025
Engine type		Reed Valve
Cylinders		L2
Displacement	cm3	703
Bore x Stroke	mm(in.)	80.0x70.0(3.15x2.76)
Ignition system		CDI
Control system		Tiller control				Remote control
Starting system		Manual start		Manual start/Electric start
Gear positions		Forward-Neutral-Reverse
Gear ratio		2.08(27/13)
Trim and tilt system		Manual tilt
Fuel tank capacity	L	24L
Maximum fuel consumption	L/h	20
Mixing ratio	Fuel:Oil	50:1
Gear oil capacity	cm3	430
Propeller options	in	3-11 1/8 " x 13 "

*Propeller choice will vary by boat size and application.
*B=Back control F=Front control M=Manual start
