GENOVO POWER MACHINE LTD.

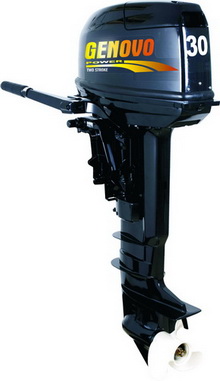

T30BML

T30BMS

Item		T30BML	T30BMS	T30FWL	T30FWS
Overall length	mm(in.)	849(33.4)		609(24.0)
Overall width	mm(in.)	399(15.7)		358(14.1)
Overall height	mm(in.)	1261(49.6)	1134(44.6)	1261(49.6)	1134(44.6)
Transom height	mm(in.)	508(20)	381(15)	508(20)	381(15)
Weight	kg	53.5	52	57	55.5
Full throttle operating range	r/min	4500-5500
Maximum output	KW(HP)	22(30)@5000r/min
Idling speed(Neutral)	r/min	1050-1150
Engine type		Reed valve
Cylinders		L2
Displacement	cm3	496
Bore x Stroke	mm(in.)	72x61(2.83x2.40)
Ignition system		CDI
Control system		Tiller control
Starting system		Manual start		Manual start/Electric start
Gear positions		Forward-Neutral-Reverse
Gear ratio		2.08(27/13)
Trim and tilt system		Manual tilt
Fuel tank capacity	L	24L
Maximum fuel consumption	L/h	12
Engine oil capacity	L	0.8
Mix ratio	cm3	320
Propeller options	in	3-9 7/8 " x 11 1/4 "

*Propeller choice will vary by boat size and application.
*B=Back control F=Front control M=Manual start
