GENOVO POWER MACHINE LTD.

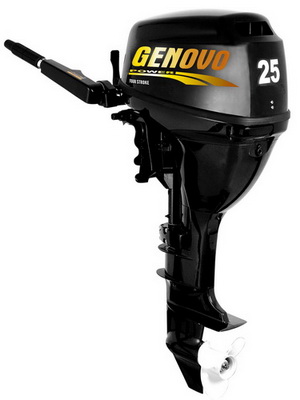

F25BML

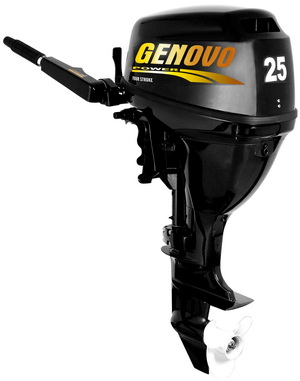

F25BMS

Item		F25BML	F25BMS	F25BWL	F25BWS	F25FWL	F25FWL
Overall length	mm(in.)	1151(45.3)				703(27.7)
Overall width	mm(in.)	43.0(16.9)				376(14.8)
Overall height	mm(in.)	1280(50.4)	1153(45.4)	1280(50.4)	1153(45.4)	1280(50.4)	1153(45.4)
Transom height	mm(in.)	508(20.0)	381(15)	508(20.0)	381(15)	508(20.0)	381(15)
Weight	kg	68	66	70	68	70	68
Full throttle operating range	r/min	5000-6000
Maximum output	KW(HP)	18.4(25)@5000r/min
Idling speed(Neutral)	r/min	925-1025
Engine type		OHC
Cylinders		L2
Displacement	cm3	498
Bore x Stroke	mm(in.)	65.0x75.0(256x2.95)
Ignition system		CDI
Control system		Tiller control				Remote control
Starting system		Manual start		Manual start/Electric start
Gear positions		Forward-Neutral-Reverse
Gear ratio		2.08(27/13)
Trim and tilt system		Manual tilt
Fuel tank capacity	L	24L
Maximum fuel consumption	L/h	9.2
Engine oil capacity	L	1.7
Gear oil capacity	cm3	320
Propeller options	in	3-9 7/8 " x 111/4 "

*Propeller choice will vary by boat size and application.
*B=Back control F=Front control M=Manual start
